Rough Terrain Forklift Purchasing Guide

Types

The term "rough terrain forklift" is a somewhat broad name that often encompasses a number of different machines. More commonly referred to as telehandlers, there are three different types of rough terrain forklifts: telehandlers, rotating telehandlers, and straight mast forklifts. Each is designed to work within extreme environments, natural landscapes, and the uneven ground often found on construction sites.

Common specs and prices include:
[table]
Type, Lift Height, Max Reach, Load Capacity, Estimated Cost
Telehandler, 20', 10', "7,400 lbs.", "$40,000 - $84,000"
Telehandler, 23', 11', "30,800 lbs.", "$104,000 - $375,000"
Telehandler, 24', 114', "9,900 lbs.", "$70,000 - $100,000"
Rotating Telehandler, 45', 38', "8,818 lbs.", "$70,000 - $180,000"
Rotating Telehandler, 97', 83', "11,023 lbs.", "$122,000 - $229,000"
Straight Mast Forklift, 9', -, "4,400 lbs.", "$24,000 - $70,000"
Straight Mast Forklift, 22', -, "6,000 lbs.", "$30,000 - $110,000"
[/table]
Often times a previously owned machine will be a more affordable option for businesses. Learn what to look for and how to find a used telehandler.

But "rough terrain" isn't simply an indication of the machine's robust nature. It also specifies design advantages that result in enhanced maneuverability and performance. Here's a closer look at the unique benefits found within each of the three types.

1. Telehandler (telescopic handler)
Telehandlers provide substantial lift heights over standard forklifts. Often designated as compact telehandlers and high-reach telehandlers, they can heft full weight capacities from 18 feet (compact) to 56 feet (high-reach) in the air. With rated load capacities commonly ranging between 5,500 lbs and 12,000 lbs, popular models include power shift transmission and all-wheel steering as well as a number of additional steering features that allow the operator to position the lift as close to the work area as possible.

Newly redesigned to incorporate the latest ergonomic features like tiltable steering wheels, many telehandlers also feature cab designs that are roomy and comfortable. This enables longer, more productive work shifts by minimizing fatigue and repetitive stress injuries. Most rough terrain forklifts within this range are run by a single joystick that controls all boom functions and hydraulics for simple and efficient operation.

Used within rugged exterior environments for construction and similar applications, telehandlers can also be fitted with non-marking tires, making them well suited to building maintenance, signage and billboard maintenance, and arenas and special event venues.

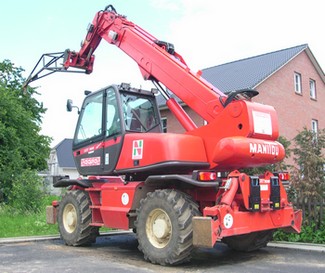

2. Rotating telehandler (roto telescopic handler)
Similar to a standard telehandler, rotating telehandlers are popular for their ability to lift heavy weight to great heights. But their design takes maneuverability a step further. Sometimes known as a rotary telehandler, rotating telehandlers are designed with turntable rotation, enabling them to swivel 360o and service a wide area from a single position. Also employing joystick controls, some machines offer the addition of a second joystick on the left side of the machine to operate rotation separately. Four-wheel, power assisted steering is common among leading brands as is minimized slip differential on the rear axle to boost traction and safety.

Many models are equipped with stabilizers to ensure safe movement with shifting loads from one side of the machine to the other. But some rotating telehandlers feature a design that allows them to move substantial weights without stabilizers as well, reducing the time it takes to reposition for the next stage of work.

Somewhat smaller than their fixed-cab counterparts, common load capacities for rotating telehandlers range between 4,000 lbs and 10,000 lbs, with lift heights from 15 to 80 feet. The extended height this type of machine offers can also be paired with a winch attachment and used as a crane, replacing the need for an additional piece of equipment on construction sites or the exteriors of multistory buildings. This level of performance also reportedly makes rotating telehandlers a popular rental option.

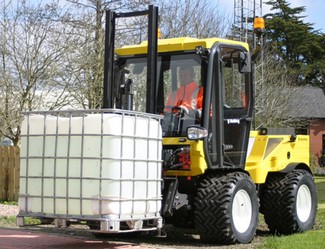

3. Straight mast forklift
Not to be confused with standard lift trucks, straight mast forklifts are essentially a cross between a forklift and an RTV. They are transported on the back of a flatbed trailer or other large truck and designed for loading and unloading building materials within a range of rough terrain environments, including construction, demolition, mining, and other industrial job sites.

Load capacities are similar to a standard lift, ranging between 5,000 lbs and 36,000 lbs. However, industrial-grade masts do reportedly provide more substantial lifting capacity at height, with 6,000-lb and 8,000-lb capacity lifts serving as two popular examples among a number of rental houses. But where a straight mast forklift really differs is in the maneuverability and accessibility it provides through large heavy-duty pneumatic cushion tires that enable the lift to traverse rough terrain as easily as any other equipment on the job site.

Most lifts in this category come with two-wheel and four-wheel drive. And depending on the model selected and your intended application and work environment, straight mast forklifts can be powered by diesel fuel or propane. This enables them to be used outdoors as well as indoors.
Back to top

Tire Types

Tires are another important factor to consider when comparing RTFs or telehandlers. Most tires that accompany this type of machine are designed for rugged terrain and exterior use. They’re available in a variety of tread depths to tackle sand and loose dirt as easily as rocky, jagged terrain. Sometimes known as motor grader tires or bias tires, they feature enhanced durability often through casings that are reinforced with nylon cording. This design lengthens the life of the tires while also making them more resistant to impact, punctures, and other damage.

Common tires found on rough terrain forklifts include:
[table]
Size, Description, Ply Rating, Tread Depth (32nds of an inch), Width, Diameter, Load
12.00-24, SGG-SA, 8, 28, 12.9", 48.4", "4,180 lbs."
13.00-24, SGG-SA, 12, 28, 13.5", 50", "6,000 lbs."
14.00-24, SGG-SA, 12, 32, 14.6", 52.6", "6,800 lbs."
15.5-25, SGL D/L-2A, 8, 30, 15.7", 49.4", "4,300 lbs."
17.5-25, HRL D/L-3A, 20, 35, 18", 53.5", "8,050 lbs."
23.5-25, SGL E/L-2A, 20, 39, 24.4", 63", "12,000 lbs."
[/table]
Rim Size
To evaluate tires, the first thing to know is how to decode the numbers on the sidewall. In numeric sizing, if the tires you're comparing have two sets of numbers, such as 12.00-24, the first number (12.00) indicates the tire's width in inches. The second number (24) specifies the wheel or rim diameter. If there are three numbers on the tire, 26x12.00-12 for example, the first number indicates the tire's height. The second is the width, and the third represents the wheel or rim diameter.

This information will come in handy when talking to your dealer. He or she should be able to consult with you on the best type of tire for your application and machine compatibility. But it’s good to have a basic understanding of how to determine which tires will work with which machinery.

• Before you purchase: When it comes to RTF offerings, dealers and tire manufacturers generally recommend sticking to a rim that is roughly the same width as the sidewall of the tires you need. This will provide the most even wear on the treads and ensure the longest life possible for the set.

Types
For rough terrain forklifts, there are generally two main types of tires used: solid rubber and polyurethane. Each has its own benefits. But depending on your intended application, one type may prove substantially more durable than the other. Discover the best type for your application with the following comparison:

1. Pneumatic tires (solid rubber)
Pneumatic tires are constructed of solid rubber. The design makes them extremely durable – immune to punctures, tears, and similar damage encountered on a job site. They also reportedly have a longer lifespan than polyurethane tires, their foam filled counterparts – three to four times as long by some estimates. While each manufacturer boasts a proprietary or patented tread, be on the lookout for models that are guaranteed flat-proof, apertures that promote ride comfort, shock absorption, single stage construction, and a variety of rubber blends that can be customized to your job site.

• Common applications: lumber yards, transfer stations, recycling centers, construction sites.
• Expect to pay: $400 to $2,000 new and $80 to $600 used.

2. Polyurethane tires (foam-filled)
The second type is not solid but is equally as flat-proof. Filled with polyurethane fill, these tires are often the standard for many telehandlers, man-lifts, and rough terrain construction machinery. The design is extremely robust while adding a cushion of extra padding for the operator, absorbing shock and smoothing out the ride on rough terrain. But where they really stand out is in load rating: reportedly supporting double the weight of their solid counterparts. Polyurethane tires are also more resistant to rolling than solid pneumatics, saving on the cost of fuel. Though not as long-lasting as solid rubber, foam-filled tires can outlast air-filled models by two to five times. They’re also substantially less expensive, often costing less than half that of a solid rubber tire.

• Common applications: heavy industrial, construction, mining, forestry, demolition, glass handling, foundries.
• Expect to pay: $150 to $700 new and $40 to $350 used.

Back to top

Specs

Rough terrain forklifts provide a high degree of mobility and safety as well as access to areas that would otherwise be off limits. Much of this productivity is the result of their heavy-duty design and components.

When comparing models, here are the popular specs and top features to be on the lookout for that are proven to drive efficiency.

Engine HP
Engine power is often a critical component of buying a rough terrain forklift. The extra horsepower allows it to tackle a wide variety of terrain and reliably heft loads to great heights on unpaved and uneven surfaces.

Under the hood, you’ll frequently find a Tier 4 Interim certified diesel engine made by Cummins, Cat, or John Deere, or a Dieselmax if you’re considering a model from JCB. Regardless of the brand name, you should expect to find an engine capable of at least 74 to 78 hp on the lower end (straight mast forklifts) and up to 142 hp on the high end (encompassing telehandlers with extended reach capability).

Maximum lift capacity
This is the total amount of weight the forklift can move off the ground. The most common lift capacities are between 4,000 and 12,000 lbs. However some of the larger telehandlers, like those manufactured by Manitou can heft up to 30,000 lbs.

It's important to distinguish between rated load capacity and max lift when fully extended. Models are capable of lifting anywhere from 50% to 100% of their stated load capacity at full height. So if your job site requires heavy loads, ask your dealer about the rating for payloads at max lift height.

Maximum lift height
Max lift height is one of the primary advantages of a rough terrain forklift. Capable of safely hoisting heavy loads within extreme work environments, telehandlers and rotating telehandlers can reach between 18 to 97 feet. But again, pay close attention to max lift capacity when the lift is fully extended.

Maximum reach
While lift height represents vertical elevation, max reach is how far the lift can extend on a horizontal plane. This feature is ideal for work environments with inaccessible upper levels – lifting building materials into the exposed structure of new construction for example.

Also known as forward reach, weight limitations are further reduced, often substantially, when the lift is extended to height and reach. For example, a telehandler with a 6,500-lb weight capacity may also be able to handle that same load at its full lift height of 42 feet. But when reaching forward, the load at max reach (without stabilizers) is only 700 lbs.

Cab dimensions
The size of the cab often accounts for the bulk of the machine’s length and width. The boom housing is positioned alongside the cab for telehandlers and other extended machinery and mounted on the front for smaller rough terrain forklifts. Average lengths are around 19 feet with widths averaging about 8 feet.

Within the cab, great strides have been made to economize the space as much as possible. This creates a more comfortable work environment for the operator and has been shown to increase productivity by reducing fatigue. Common cab enhancements include:

• Ergonomic controls and intuitive control layout
• Easy entry and exit with handholds and built-in step
• Increased safety through an open rollover protection structure (OROPS) or enclosed rollover protection structure (EROPS) that extends over the driver’s seat
• Improved visibility through windows and boom placement

Outriggers / stabilizers
Outriggers are engineered to allow added weight to be lifted to maximum height while ensuring the safety of the operator and any personnel in the lift. Most commonly known as stabilizers, they are most frequently installed on larger telehandlers and mounted to the front of the lift.

Largely intended for safety during forward reach operation, they prevent rollovers by elevating the front tires off the ground and counterbalancing the extra weight. For example, a telehandler capable of a max load of 7,000 lbs fully extended may only be capable of 1,100 lbs during maximum forward reach. But with the stabilizers down, that same lift has a max forward reach capacity of 2,700 lbs.
Back to top

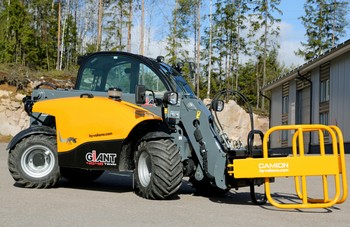

Attachments

Though not quite as versatile as a skid steer loader, telehandlers and other rough terrain forklifts accept a number of attachments that boost both productivity and safety. Some of these can also save you on the purchase of unnecessary equipment by converting a rough terrain forklift to a number of other heavy industrial machines.

Included among the most popular attachments are:
[table]
Attachment, Description, Average Cost
Standard carriage, "Often included with many models, a standard carriage measures between 48 to 72 inches and is used to haul, load, and unload around the job site. Most major brands feature quick-coupling technology.", "$1,800 to $3,100"
Side-tilt carriage, "Similar to the standard carriage, this model provides up to a 10o rotation on the carriage, allowing the operator to compensate for uneven terrain when picking up or placing materials. It also allows the operator to tilt the entire load slightly during transport.", "$4,300 to $5,500"
Swing carriage, "Providing a 180o swing, this type of carriage allows the operator to slip in or out of work areas more effectively and safely by shifting the load to the other side of the machine. Commonly supporting weights of 6,500 and 8,500 lbs, it also minimizes repositioning of the lift during operation.", "$7,000 to $10,000"
Side-shift carriage, "Side-shift carriages enable the operator to move the load from side to side for easier placement and retrieval without repositioning the lift. They come in two types: “integral,” where the side-shift is a built-component of the carriage itself, and “hang-on,” an aftermarket upgrade that is mounted to the existing carriage.", "$7,000 to $9,500"
Dual fork positioning carriage, "This time-saving carriage enables the operator to adjust fork positioning automatically, without having to physically leave the cab and slide them over by hand.", "$1,500 to $2,800"
Pallet forks, "Found on any standard lift truck, pallet forks allow the operator to move and transport palletized goods. Forks measuring 48 inches are standard, with longer options including 60 inches and 72 inches. A 10,000-lb weight capacity is typical.", "$1,200 to $2,000"
Lumber forks, "The same as pallet forks, only wider. The wider surface area of the forks provides more support for heavy weights often found in pallets of cement and bundles of lumber.", "$1,500 to $2,600"
Cubing forks, "Used for transporting palletized blocks or brick, cubing forks include anywhere from 4 to 6 forks to provide extra support.", "$1,800 to $3,200"
Grapple bucket, "Add a hydraulic claw onto a standard forklift bucket and you’ve got a grapple bucket. They’re designed for safely transporting brush, refuse, and other loose materials without it spilling around the work area.", "$3,600 to $9,300"
Material bucket, "More heavy-duty than a standard bucket, some models feature a bolt-on cutting edge for hacking trees and large shrubs during landscaping and demolition.", "$2,400 to $2,800"
Lifting hook, "A lifting hook turns a standard carriage into a hoisted rig capable of picking up and transporting non-palletized items, large pipes or cylindrical containers being common examples.", "$700 to $2,400"
Universal skid steer adapter, "While the rough terrain vehicles don’t accept a wide range of attachments themselves, they can be retrofitted with a universal skid steer adapter and instantly pair with the full range of accessories available. This attachment has the potential to greatly reduce the purchase of redundant equipment.", "$450 to $600"
Tower, "An extension without really being an extension, a tower provides an extra 8 feet of reach, allowing the operator to place and retrieve materials at greater heights without the purchase of a boom extension.", "$2,500 to $2,800"
Fork-mounted work platform, "Popular among facilities and building management personnel as well as utilities providers and billboard companies, these platforms turn a rough terrain forklift into a personnel lift. They come in a variety of sizes and weight classes, typically supporting one or two individuals and the necessary tooling.", "$700 to $7,250"
Truss boom, "Designed for lifting and positioning trusses and other large pre-assembled building materials, truss booms add an extra 6 feet of reach onto the end of a telehandler boom. Depending on your application, they can be purchased with and without a winch.", "$2,700 to $11,300"
[/table]
Learn more about the different types of telehandlers and the attachments available.
